Rays Volk Racing CE28N Diamond Black Wheels Set 5X114.3 17X8 +33 Offset 18X9.5 +22 Offset Honda/Acura NSX 91-2005 NA1 NA2
The Volk Racing CE28N wheel is one of the Lightest and Strongest Wheels Rays Engineering offers! The Volk Racing CE28N wheel is a One Piece Forged (Monoblock) Aluminum Wheel. Front Wheels clears Stoptech ST40M BBK with no spacers, Rear Wheels will need 3mm spacer to clear Stoptech ST40M.
Specs: Front Wheels 17x8, 5x114.3 pcd, +33 offset, Weights 15.54 lbs or 7.05 kg. Rear Wheels 18X9.5, 5X114.3, +22 Offset, GTR Concave Face. Finished in RAYS Diamond Black Color.
Features:
Forged Monoblock Wheel
10 Spoke Model
Super Light; 15.54 lbs/7.05 kg per wheel for front wheels
Painted in Volks famed Diamond Black
Painted Diamond Black Flat Center Caps are optional
Black Valve-stems, valve stem caps are included
*Price is for a set of 4 wheels (2X17X8 and 2X18X9.5).
**Shipping is FEDEX Ground Only, please do not select any other shipping method.
This is Diamond Black:

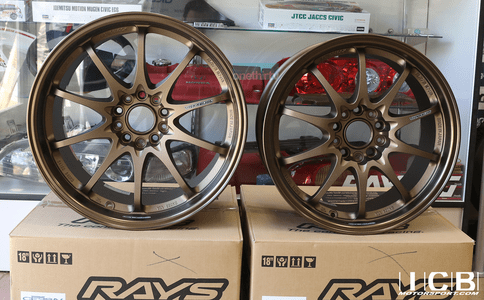

Below Pics are Bronze but exact spec., please use too see Concavity of the wheels:
18X9.5 5X114.3 +22 Offset - GTR Concave Face:
17X8 5X114.3 +22 Offset - Regular Face:
How Bronze CEs looks like on Black NSX - rear wheels is another spec (18X9.5 +40) and not GTR concave so this set would look much better:
